Laser scanning software raises productivity at Shockey

5 April 2020

US contractor Howard Shockey & Sons has reported improved construction sequencing and significantly reduced project schedules following the introduction of Pointfuse laser scanning software into its scanning and VDC workflows.

Shockey initially used Pointfuse on a £11.2m adaptive reuse project in Virginia, which will result in the creation of a 46,400 sq ft career and innovation centre. Following demolition work and the removal of suspended ceilings, the project was scanned in just two hours using a Leica BLK360 laser scanner. The result was a 9GB file composed of 900 million measurements and 19 3D panoramic HDR images.

Charles Goin, VDC manager at Shockey, said: “Using Pointfuse, we converted the point cloud into a vector cloud-based model and were able to classify major existing systems such as structural and MEP. This process not only improved the usability of the data, but it also reduced the cloud size to under 80MB from 9GB, a factor of over 100. We then combined the as-built Pointfuse model with the design model to run clash detection and improve coordination with the other subcontractors.”

Used to convert vast point clouds generated by laser scanners and photogrammetry, Pointfuse creates manageable, intelligent mesh models that automatically classify building features, aid in clash detection, and other construction processes – all in small, portable files that can be up to 100 times smaller than the original point cloud. This level of product integration provides for a seamless union of technologies resulting in considerable project cost savings.

Comparison of the Pointfuse model with Shockey’s previous system highlighted areas where the as-builts deviated from the design. This allowed the Shockey team to identify additional structural concrete forms, and changes in the size and spacing of the joists (which impacted architectural treatments and finishes) along with other services such as HVAC, MEP, and fire safety.

Shockey shared the Pointfuse model with the designers and subcontractors who were already using 3D models for coordination and informed the mechanical contractor (as changes to the planned HVAC system would be required). This allowed for the modification and integration of the existing sprinkler mains into the new fire safety system to save costs.

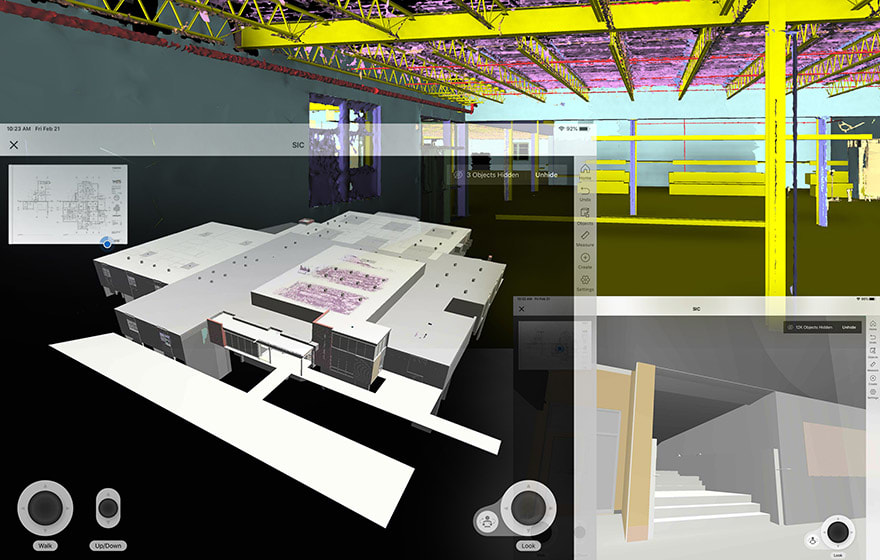

Goin added: “The most exciting result from creating the vector cloud using Pointfuse was the ability to democratise the scan data. We were able to upload the model into our cloud-based construction management software Procore, and its VDC Model module, thereby allowing everyone on the team from the architect to field superintendent to view the scan data simply via an app on an iPad or iPhone.”
